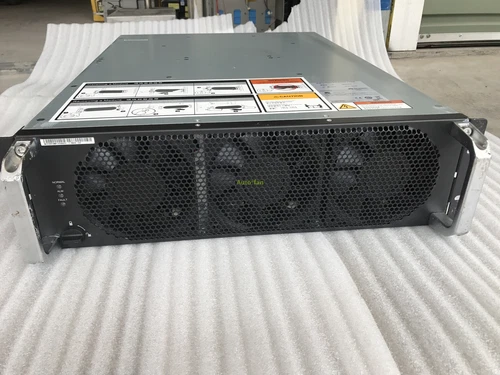

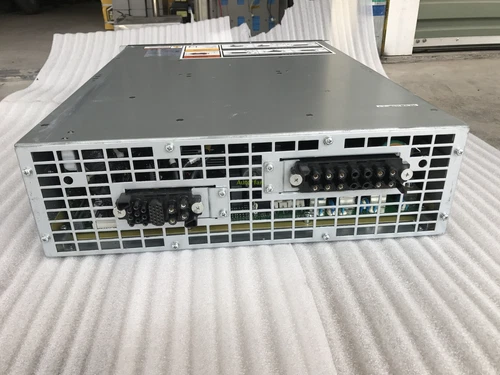

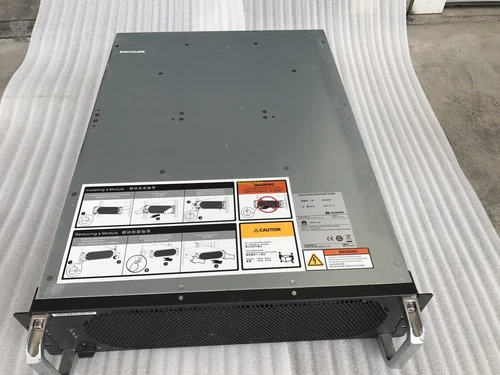

Pre-owned UPS5000 Series Super Power Loard 30KW
Product ID: 18952
Model: UPS5000 Series Super Power Load
- Power Capacity: 30KW (kilowatt) / 30kVA
- UPS Type: Online Double-Conversion (VFI-SS-111)
- Input Voltage: 380/400/415V, 3-phase ±15%
- Input Frequency: 40–70 Hz (auto-sensing)
- Input Power Factor: >0.99
- Output Voltage: 380/400/415V, 3-phase ±1%
- Output Frequency: 50/60 Hz ±0.1% (selectable)
- Output Waveform: Pure sine wave
- Efficiency: Up to 96% in online mode
- Battery Type: Lead-acid VRLA or Lithium-ion (external, user-supplied)
- Battery Voltage: Typically 192–240V DC (configurable)
- Backup Time: Depends on battery bank (not included)
- Display: LCD touchscreen with status, alarms, and metering
- Communication Ports: RS232, RS485, Dry contacts, SNMP (optional)
- Form Factor: Tower / Rack-mount modular cabinet
- Cooling System: Intelligent temperature-controlled fans
- Dimensions (WxDxH): 600mm × 850mm × 2000mm
- Weight: Approx. 500 kg (without batteries)
- Operating Temperature: 0°C to 40°C
- Humidity: 0–95% non-condensing
- Noise Level: <55 dB at 1 meter
- Certifications: CE, UL, RoHS, ISO9001
- Parallel Operation: Yes, up to 4 units for capacity or redundancy (N+X)
- Protection Features: Overload, short circuit, over-voltage, under-voltage, temperature protection
