APC Smart-UPS X 1500VA Rack/Tower LCD 120V
Product ID: 18907
Model: Smart-UPS X 1500VA (SMX1500RM2UC)
- Power Capacity: 1500VA / 1350W
- Technology: Line-interactive
- Input Voltage Range: 75–154V (adjustable), 82–144V (default)
- Input Plug Type: NEMA 5-15P, 2.44 m (8 ft) cord
- Output Voltage: 120V AC (pure sine wave)

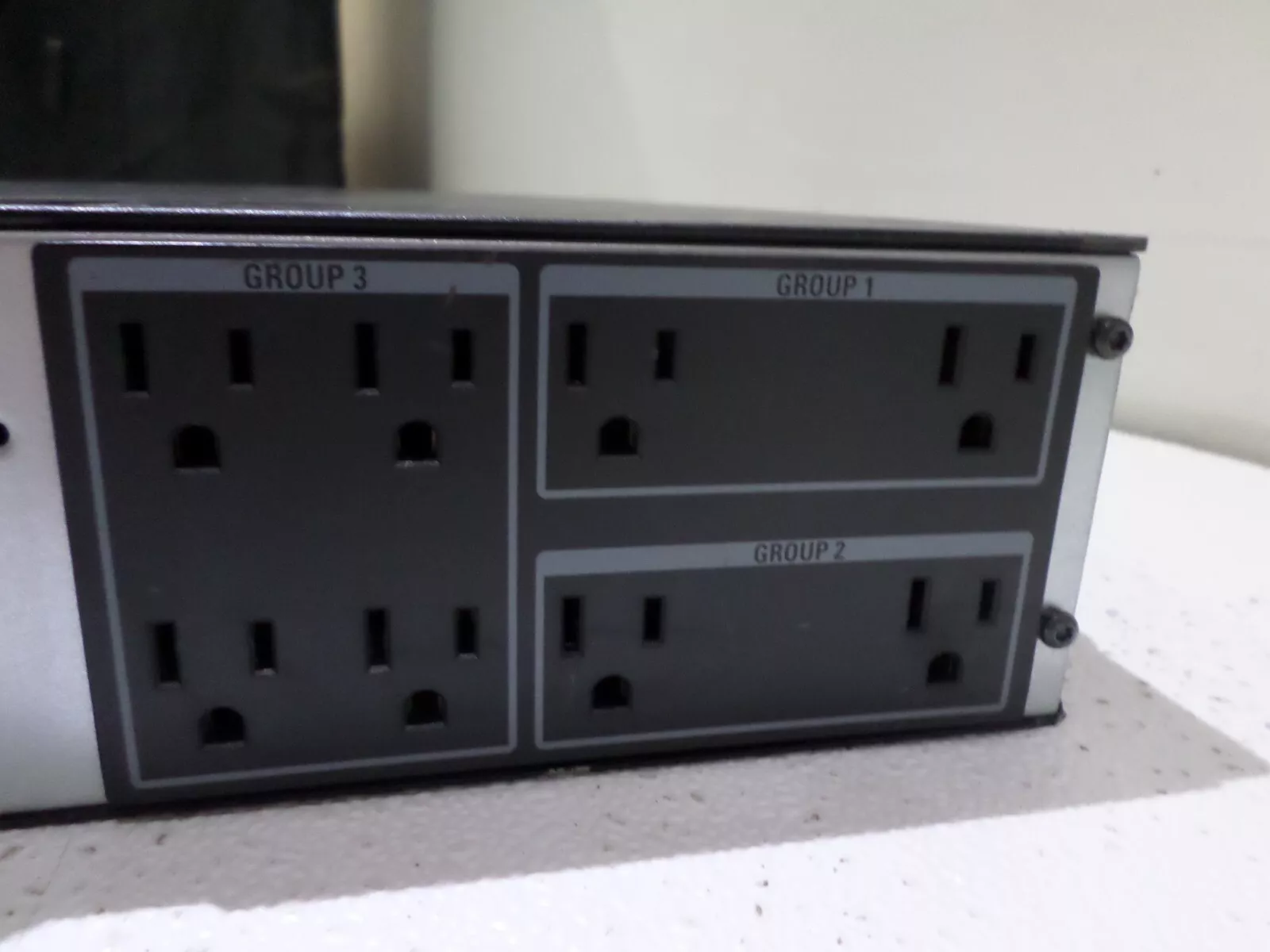

- Output Receptacles: 8 × NEMA 5-15R
- Rack Size: 2U
- Dimensions (HxWxD): 3.5″ × 17″ × 19.3″ (89 mm × 432 mm × 490 mm)
- Weight: 24.8 kg (54.6 lbs)
- Mounting: Rack / Tower convertible (comes with rack kit and tower feet)
- Battery Type: Sealed, maintenance-free lead-acid, hot-swappable
- Battery Recharge Time: ~3 hours
- Expected Battery Life: 3–5 years
- Expandable Runtime: Yes, with external battery packs (SMX48RMBP2U)
- Runtime at Full Load (1350W): ~5 minutes
- Runtime at Half Load (675W): ~15 minutes
- Runtime at 200W: ~65 minutes
- Surge Energy Rating: ~645 Joules
- Management Interface: USB, Serial (RJ-45), Ethernet (SmartConnect)
- SmartSlot: 1 available for optional network management cards
- Display: Multifunction LCD status and control panel
- Alarms: Audible alarms for battery, overload, replace battery
- Software: APC PowerChute Business Edition (for graceful shutdown)
- Certifications: ENERGY STAR, RoHS, UL 1778, cUL
- Operating Temp: 0–40°C (32–104°F)
- Operating Humidity: 0–95% (non-condensing)
- Package Includes: UPS, USB cable, RS-232 cable, Ethernet cable, rack mounting rails, tower feet, user guide
